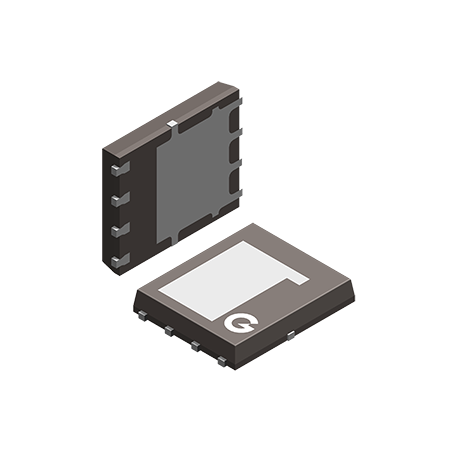

PDFN5X6DSC
Performance Features
- CLIP Copper Interconnect Technology: Replaces traditional aluminum wire bonding with heavy-gauge copper clips. This significantly reduces electrical impedance and creates an efficient top-side heat dissipation path.
- Dual-Side Cooling: Enables simultaneous heat conduction from both the top and bottom surfaces, maximizing thermal efficiency.
- Ultra-Low Thermal Resistance: Achieves a junction-to-case thermal resistance (RθJC) approximately 20% lower than traditional packaging, reaching as low as 0.85°C/W.
- High Reliability: Offers exceptional durability with a power cycling lifetime exceeding 500,000 cycles, far surpassing conventional packages.
Core Advantages
- Extreme Thermal Performance: Doubles the cross-sectional area of the thermal flow path, significantly lowering junction temperature or allowing for higher current carrying capacity.
- Superior High-Temperature Stability: Demonstrates far less performance degradation at elevated temperatures compared to traditional packages.
- Ultra-High Power Density: Delivers extremely high current density within a compact DFN5x6 package.
- System Cost Efficiency: Helps optimize overall system costs by reducing the required heatsink size or decreasing the number of parallel MOSFETs.
Key Applications
- AI Server Power Supplies: Ideal for extreme current density environments, such as GPU power modules.
- Electric Vehicles (EVs): Suitable for main circuits in Battery Management Systems (BMS) and traction inverters.
- High-End Consumer Electronics: Perfect for power solutions in ultra-thin laptops and high-performance gaming notebooks.
- Drones (UAVs): Optimized for electronic speed controllers (ESCs) and power systems.
